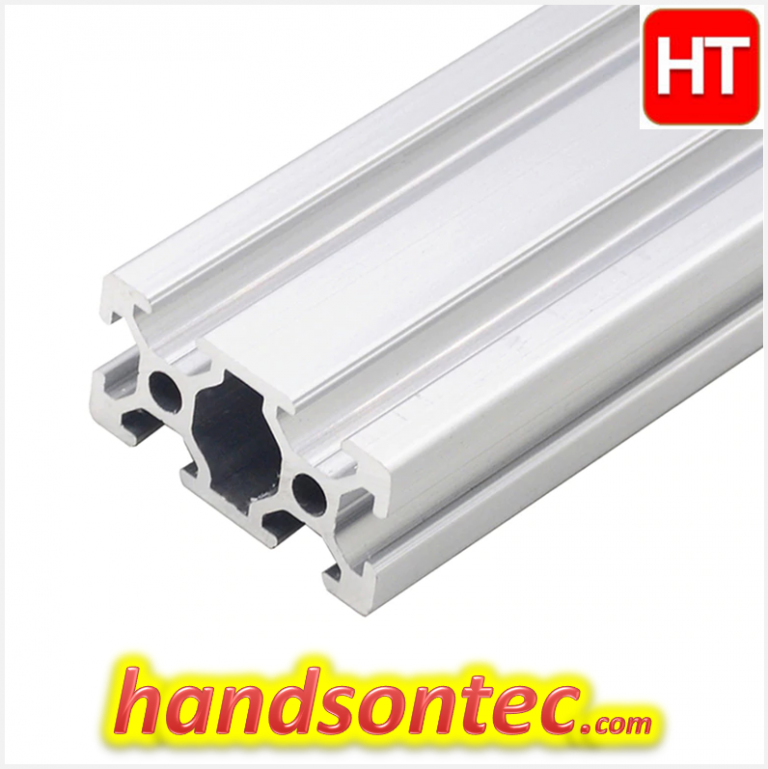

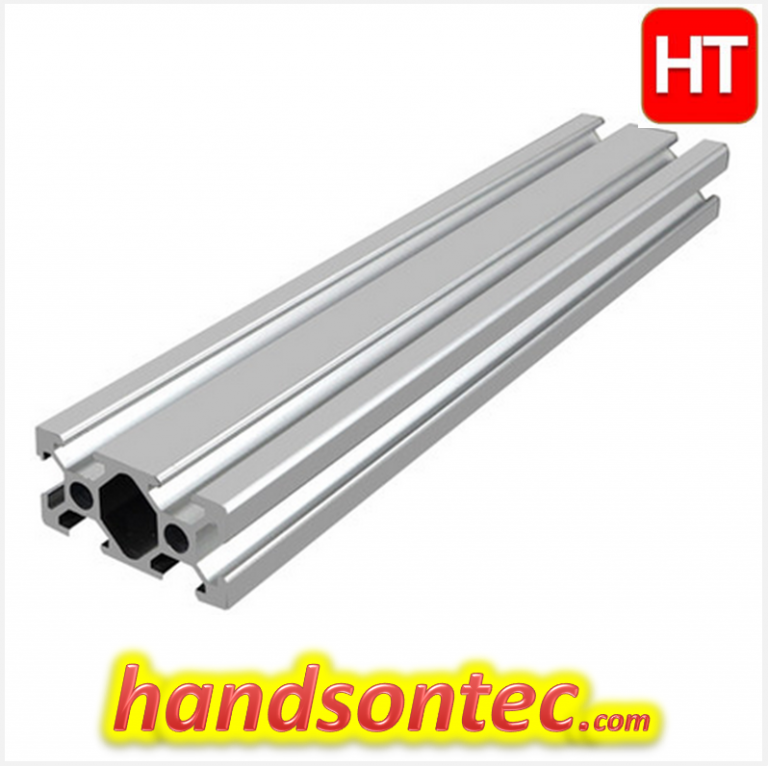

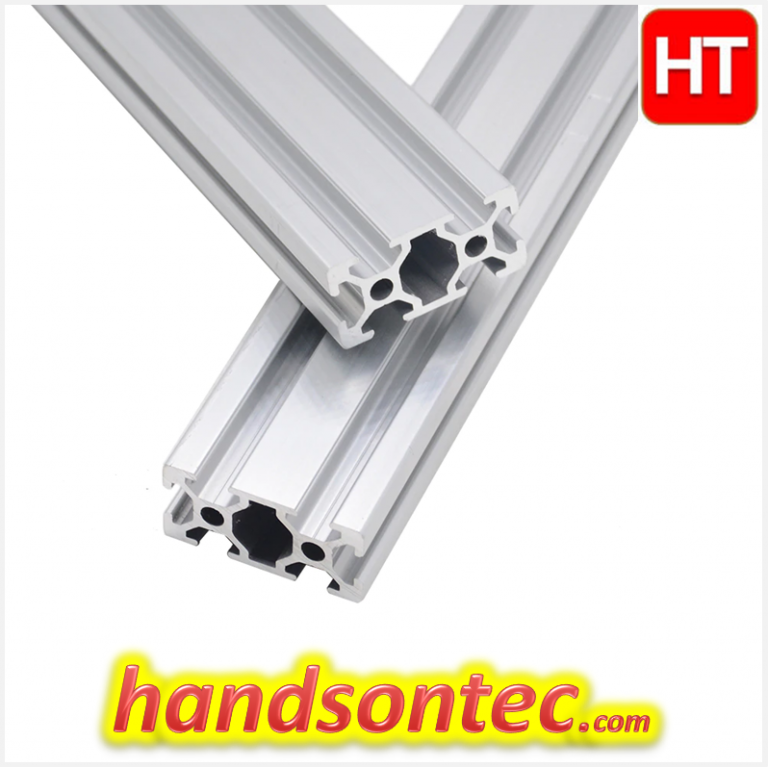

20x40mm Aluminum Profile~L1000mm

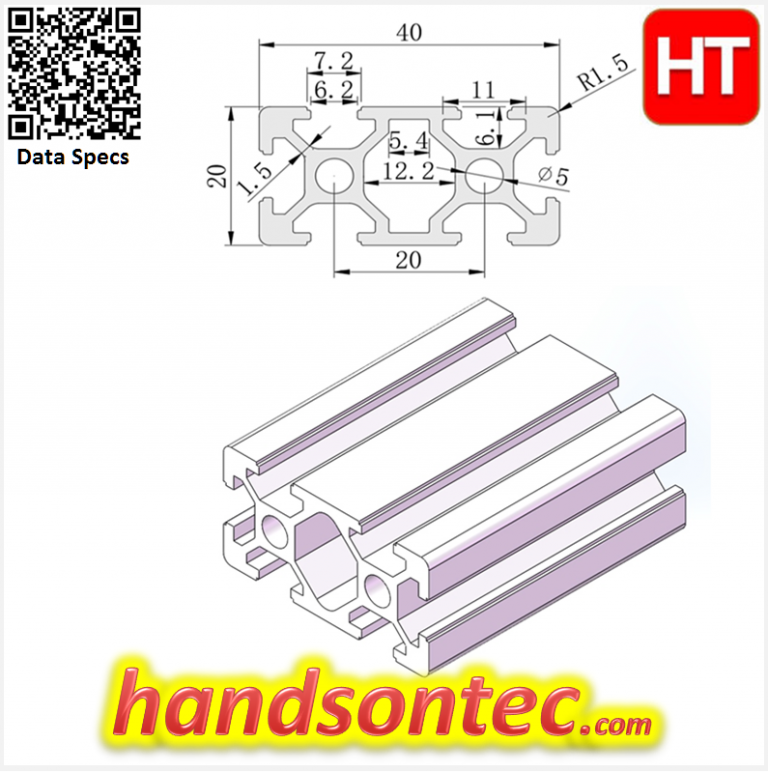

Description This aluminium profiles are generally based on 20mm core dimensions, with a 5mm slot that allows a maximum slot nut thread of M5, these aluminium extrusions are used for small, light precision applications such as sensor supports, 3-D printer, CNC machine and robotic linear motion. The system has it’s own range of ancillary parts such as hinges, handles, slot nuts and connectors. Made of aluminum, exactly 20x40mm rectangular and has slots on all four sides. You can use T-nuts that slide into the slots to connect plates, couplers, PCBs, cut-outs, etc. Brief Data: Profile size: 20 x 40mm Length: 1000mm. Center Hole Diameter: 5mm. Can be tapped for M6 screws. Material: Aluminum 6063 6-slots. Coating: Silver Anodized. Profile weight: 0.75kg/m Related Information: 2020 Profile Specification Our Local Outlet: Shopee lelong.com.my
